Multicolor LED

1. 파트

- Raspberry

- Breadboard

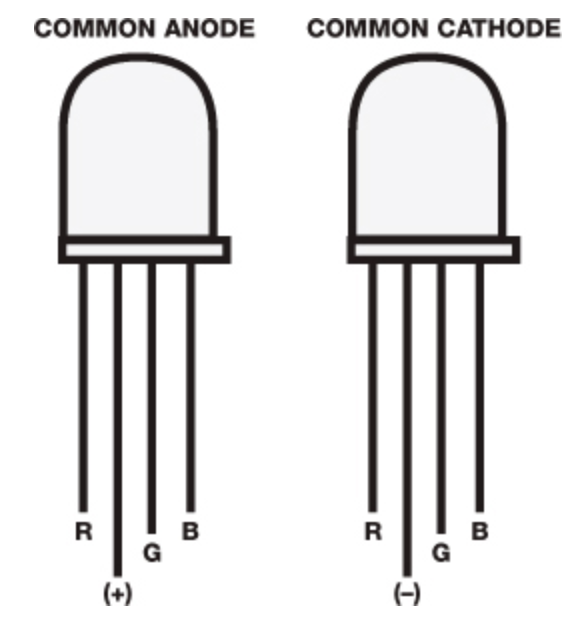

- Common cathode RGB LED

- 3 EA * 330 옴 resistors

- Jumper wires





2. 코딩

common cathode를 사용하여 red lead는 gbio23, cathode는 gnd에, green lead는 gpio24,

blue lead는 gpio25에 연결하여 구성



from gpiozero import PWMLED

from tkinter import *



def change_color(self):

    red.value = red_slider.get()

    green.value = green_slider.get()

    blue.value = blue_slider.get()



def close_window():

    window.destroy()





red = PWMLED(23)

green = PWMLED(24)

blue = PWMLED(25)





window = Tk()

window.title('Multicolor Led Test')

window.geometry('300X200')



red_slider = Scale(window, from_=0, to=1, resolution = 0.01, orient=HORIZONTAL, label='Red',

                troughcolor='red', length=200, command=change_color)

red_slider.pack()



green_slider = Scale(window, from_=0, to=1, resolution = 0.01, orient=HORIZONTAL, label='Green',

                troughcolor='green', length=200, command=change_color)

green_slider.pack()



blue_slider = Scale(window, from_=0, to=1, resolution = 0.01, orient=HORIZONTAL, label='Blue',

                troughcolor='blue', length=200, command=change_color)

blue_slider.pack()



close_button = Button(window, text='Close', command=close_window)

close_button.pack()



mainloop()
